PRODUCT CODE: F-CL2

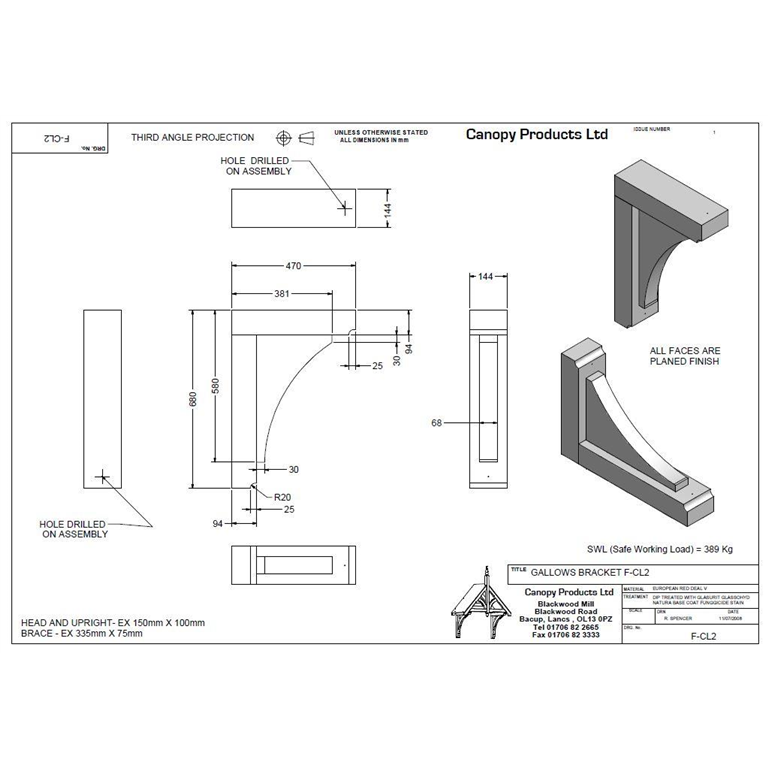

F-CL-2 Timber Corbel Bracket 470mm projection

Products code: F-CL-2

• Safe working load; 389kg.
• The safe working load is calculated with a safety factor of 6. It's worth noting that the specific application and structural requirements of a project will determine whether a timber gallows bracket is the appropriate choice. Consulting with a structural engineer or a qualified professional can help ensure that the right support system is selected for the intended purpose.
• Upright; 680mm ex 150mm x 100mm
• Head; 470mm ex 150mm x 100mm
• Brace; ex 335mm x 75mm Timber;
• European Vth Redwood.
• All joints are mortise/tenon where appropriate.
• All product codes Prefixed with F are certified FSC mix 70% INT-COC-003944.274.
• Fixing kits can be supplied. If the Gallows states a SWL then we have had calculations to achieve this. We have not calculated the loading on the gallows or any fixing load as a result of the loading. Please consult a suitably qualified person to ensure the wall that the gallows are being fitted to can stand the weight of your structure. You should ensure that the fixings used are suitable for your particular purpose and substrate.

Fixing kits-See Timber brackets fixing kits for details.

Optional fixing kits - Throughbolts / Thunderbolts or Resin depending on application; Please see Timber bracket fixing kits for details -

Prices quoted are for single items not per pair.

Excludes delivery costs. Delivery normally 2 working days.

Our Timber products are inspected for faults, dead knots and shakes are filled using a two-part resin filler. All our timber products are now treated with an industrial wood preservative as defined in BS/EN 335-1:1994.The product protects the wood surface against wood destroying and wood discolouring fungi and satisfies the performance requirements of EN599-1. This allows the product to be stained/painted on site.
