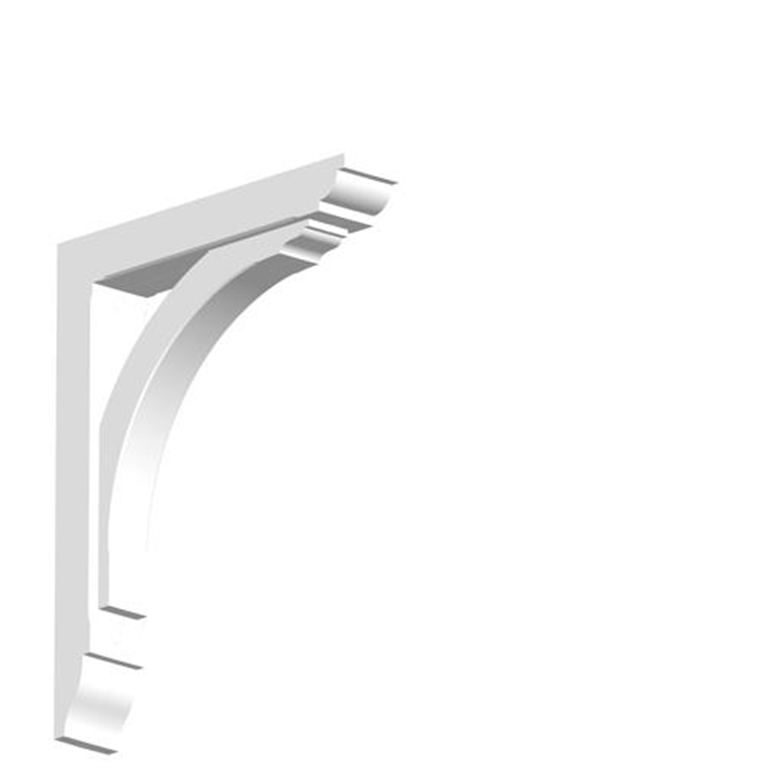

Duropolymer gallows bracket Projection 400mm SWL 35kg GBO2

SKU:GBO2

34 in stock

£33.52 | Excluding VAT

Quantity
Compare
  • GBO2 490mm high x 400mm projection x 70 wide
  • Strong braced curved brace bracket, Duropolymer, wood grain, in white only. These high quality products may be left in the factory finish or can receive any high quality paint finish. UV Stable.
  • Available for next day delivery.
  • Technical-  SWL- 35kg. Head and upright 70mm x 50mm. Brace 70mm x 50mm. Weight 2.5 kg.  Built in fixing sleeves at three fixed points. The products are supplied with 3 No 130mm x 8mm sleeve anchors and white plastic caps. The fixings must be placed in the marked positions on the gallows bracket in ther built in sleeves at the top and base of the upright and the outer end of the head. The safe working load stated is per bracket with an even  spread load along the length of the head. The foot of the upright has a lambs tong return moulding. The head has a return ovlo moulding. The brace is profiled to the leading and trailing edges and has a lambs tong return moulding to the top of the brace.
Weight 2.5 kg
Dimensions 400 × 70 × 490 mm
