PRODUCT CODE: F-HU-3B

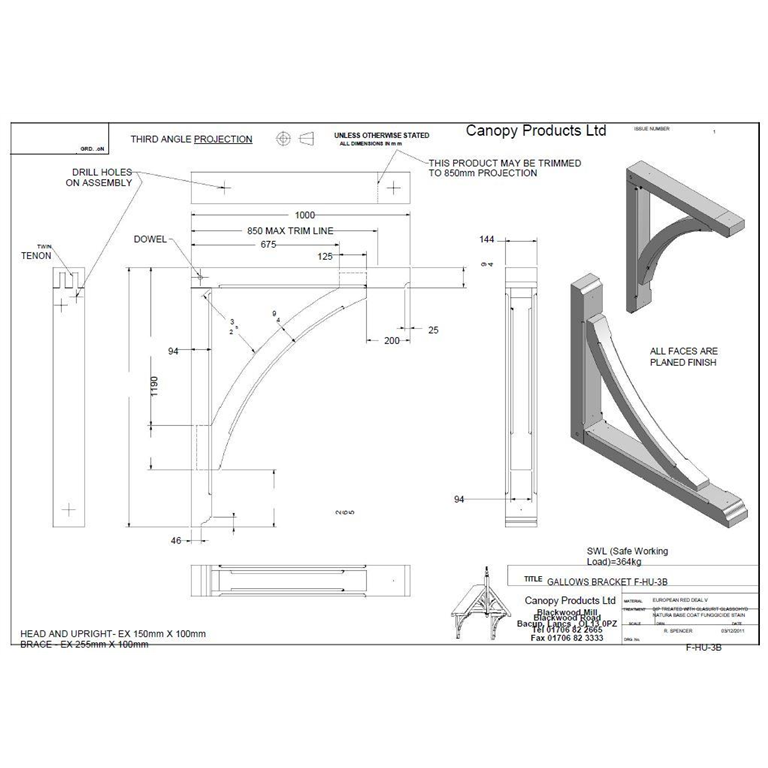

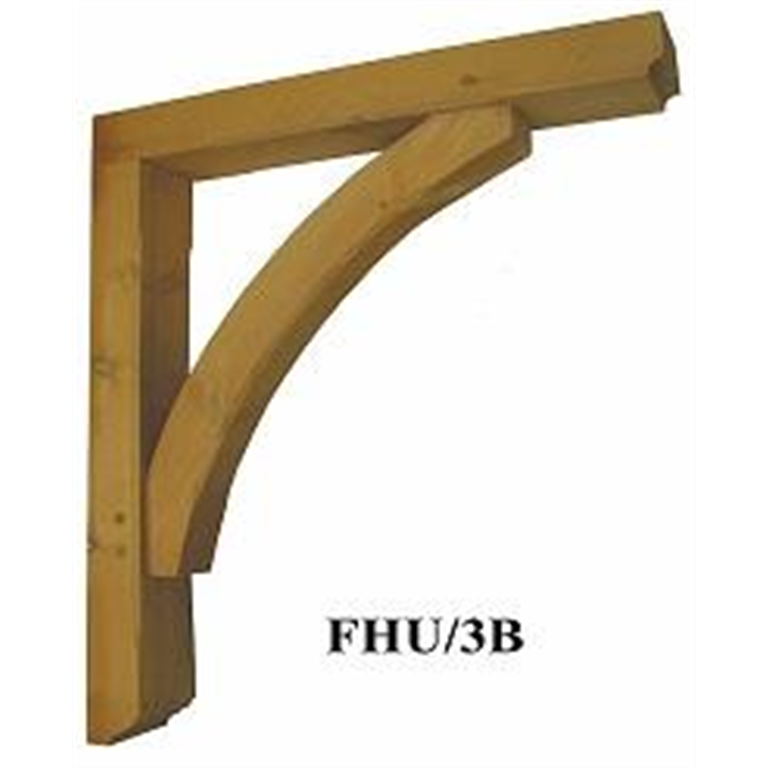

F-HU-3B Engineered Heavy DutyTimber Gallows Bracket Projection 1000mm

Products code; F-HU-3B

Note all our brackets have mortise and tenon joints where applicable. We are aware of gallow brackets being sold butt jointed and screwed. This can cause the joint to open up and cause the bracket to fail over a period.

• Safe working load; 364kg
• Upright; 1190mm ex 150mm x 100mm Head; 1000mm ex 150mm x 100mm Brace; ex 255mm x 100mm Timber;
• European Vth Redwood.
• All joints are twin mortise/tenon where appropriate.
• The safe working load is calculated with a safety factor of 6. It's worth noting that the specific application and structural requirements of a project will determine whether a timber gallows bracket is the appropriate choice. Consulting with a structural engineer or a qualified professional can help ensure that the right support system is selected for the intended purpose.

Fixing kits-See Timber brackets fixing kits for details.

Optional fixing kits either Thru-bolt or resin depending on application;

Fixing kit; Through Bolts M12 140mm x 4, x4 25mm Oak mushroom caps or Resin Kit; X4 resin set 200mm M16 (inc of resin capsule), x4 25mm Oak Mushroom caps.

All product codes Prefixed with F are certified FSC mix 70% INT-COC-003944.274. Prices quoted are for single items not per pair.

Excludes delivery costs. Delivery normally 2 working days.

 Our Timber products are inspected for faults, dead knots and shakes are filled using a two-part resin filler. All our timber products are now treated with an industrial wood preservative as defined in BS/EN 335-1:1994. The product protects the wood surface against wood destroying and wood discolouring fungi and satisfies the performance requirements of EN599-1. This allows the product to be stained/painted on site.
