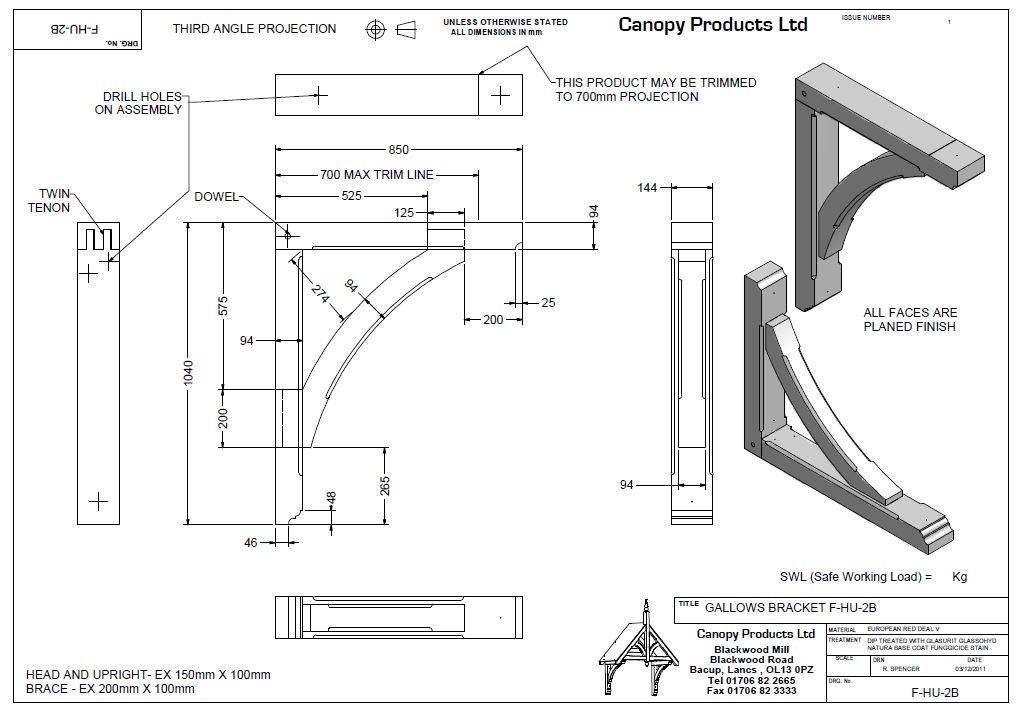

F-HU-2B Engineered Heavy DutyTimber Gallows Bracket Projection 850mm

SKU:F-HU-2B

54 in stock

£186.87£192.88 | Excluding VAT

Clear
Quantity
Compare

Products code; F-HU-2B

Safe working load; 369kg

Upright; 1040mm ex 150mm x 100mm

Head; 850mm ex 150mm x 100mm

Brace; ex 220mm x 100mm

Timber; European Vth Redwood.

All joints are mortise/tenon where appropriate.

Optional fixing kits either Thru-bolt or resin depending on application;

Fixing kit; Through Bolts M12 140mm x 2, x2 25mm Oak mushroom caps or

Resin Kit; X2 resin set 200mm M16 (inc of resin capsule), x2 25mm Oak Mushroom caps.

All product codes Prefixed with F are certified FSC mix TT-COC-003944.274.

Prices quoted are for single items not per pair. Excludes delivery costs. Delivery normally 2 working days.

The safe working load is calculated with a safety factor of 6. Calculations to find the load should be obtained to prove suitability of the product for your application.

Our Timber products are inspected for faults, dead knots and shakes are filled using a two-part resin filler. All our timber products are now treated with an industrial wood preservative as defined in BS/EN 335-1:1994. The product protects the wood surface against wood destroying and wood discolouring fungi and satisfies the performance requirements of EN599-1. This allows the product to be stained/painted on site.

Weight 16.5 kg
Dimensions 850 × 0.15 × 1040 mm
