PRODUCT CODE: GSF-S2

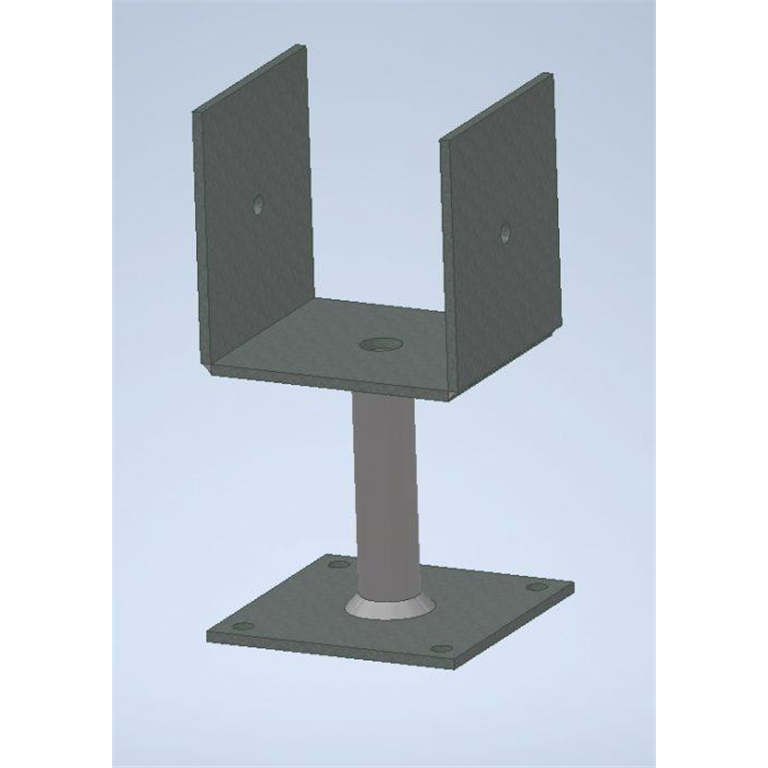

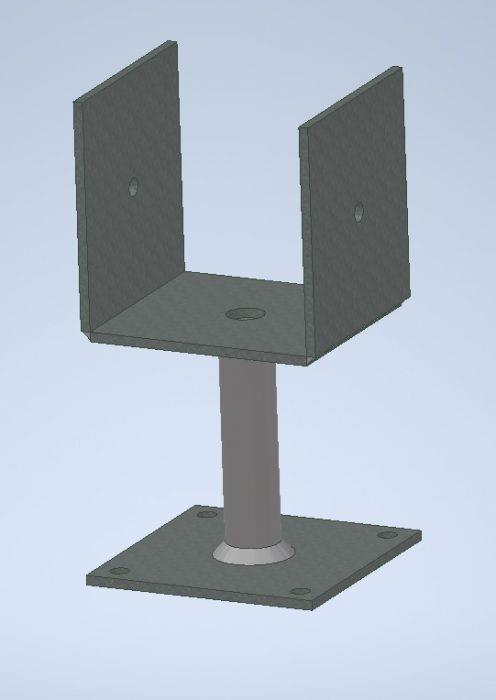

Galvanised Steel Stirrup Post Base for ex 150mm x 150mm post

£59.00
Ex VAT
  • 42 In stock
  • Available for delivery


READ MORE

Suitable for car barns, Timber structures with Glulam,  Engineered timber columns and posts  Ex 150 x 150mm post Optional Fittings kit Includes

  • x4 120mm M10 Thru-bolts, x2 30mm M10 coach screws - Fixing kit GSB

Our galvanized steel post shoe is designed to be resistant to exposure to the elements. By keeping the timber post above the ground level out of the damp areas and allowing the post foot to dry out after rain it helps prevent decay and prolong the life of the post. SWL to be confirmed

  • The post base can be fixed to concrete using 4 No 100 mm x M10 thru-bolts, or may be concreted into the foundation. The timber post can be fixed to the post base with two 30mm x 10mm coach screws if required.
  • Technical- See product spec tab. The 144 mm deep steel stirrup has an internal measurement of 141mm. The upright fin is 130mm wide. The cup is drilled with 2 No 12mm holes. The post is a 144mm x 34 x 2mm wall tube. The 150mm x 150mm x 6mm base plate has 4 No x 12mm holes in the corners of the base plate to receive fixing bolts if required. The cup is welded to the base plate and to the steel tube. The completed shoe is hot dip galvanized. This product is designed to be concreted into the ground or fixed to a concrete base. SWL is worked out with a safety factor of 6. Please ensure you refer to a structural engineer to ensure the product is suitable for your application.
  • Price excludes delivery.
