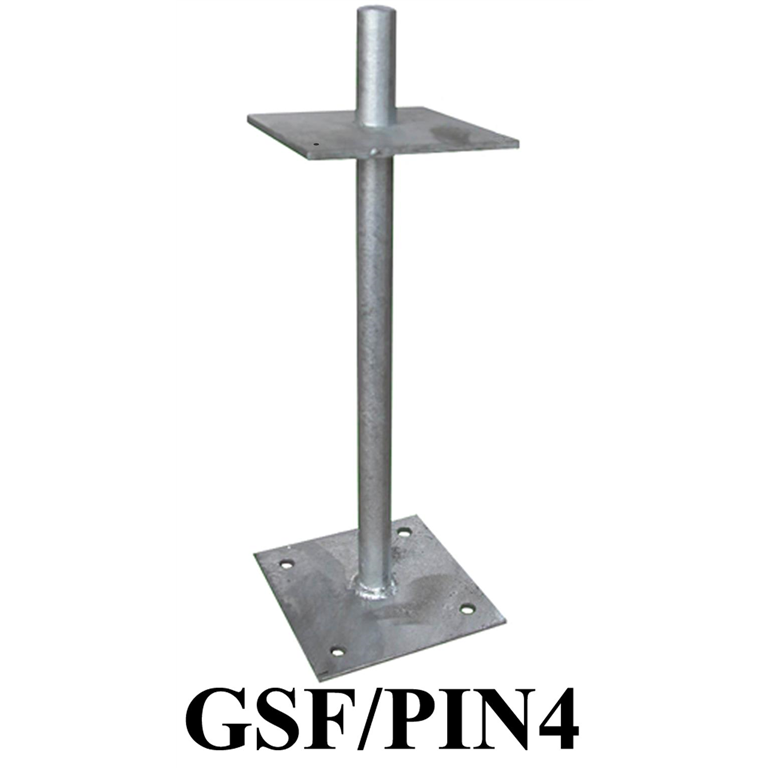

Galvanised Steel Flanged Pin 420mm high to recieve post size 150mm x 150mm GSF-PIN4


33 in stock

£40.66£46.46 | Excluding VAT


Fittings Kit Includes:

  • x4 120mm M10 thru-bolts, x2 SS pozi flange wood screws.

Our range of Galvanised Steel post bases are designed to be resistant to exposure to the elements. By keeping the timber post above the ground level out of the damp areas and allowing the post foot to dry out after rain it helps prevent decay and prolong the life of the post.

•The products are made from steel round bars with two square plates welded to the bar. To be built into masonry or to be concreted into the ground. SWL 19kn.

•Technical- The square plates are welded onto the bar. Holes are drilled to receive sleeve bolts and wood screws. The completed product is hot dip galvanized. The safe working load is calculated using a factor of safety of six. For approximate converting the SWL  into tonnes divide by 10.  GSF/PIN4 420mm high, 25mm diameter bar, with a 130mm x 130mm x 6mm flange 354mm high above the base. The base is 150mm x 150mm x 6mm square, drilled with four 12mm holes for fixings.

•Fixing kit available see fixing section.

•Price exclude delivery. Available for next day delivery.

Weight 3.75 kg
Dimensions 130 × 130 × 420 mm
Fittings Kit
