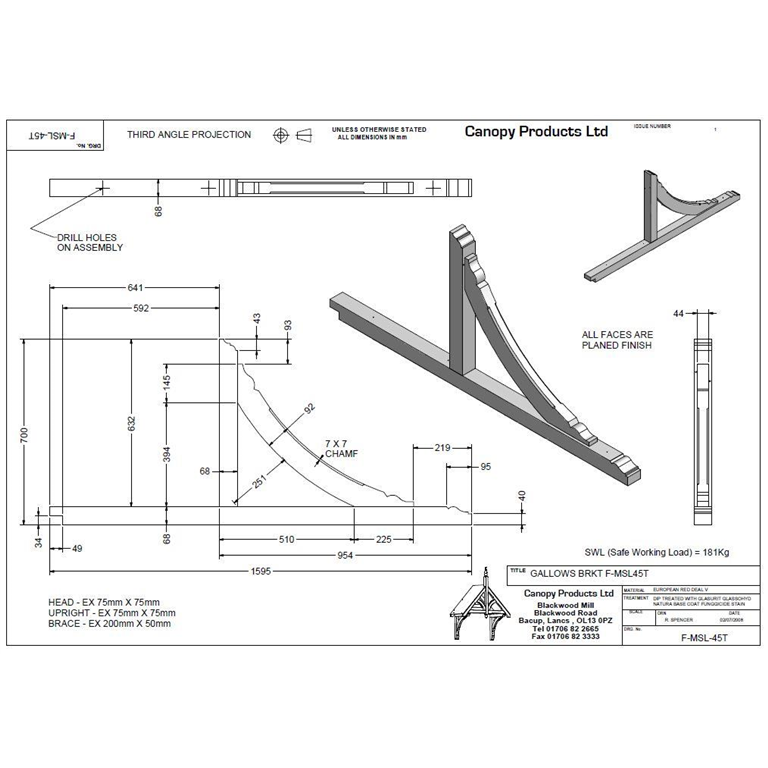

Products code; F-MSL-45-T
Safe working load; 181kg
Upright; 1595mm ex 75mm x 75mm
Head; 700mm ex 75mm x 75mm
Brace; ex 200mm x 50mm
Timber; European Vth Redwood.
All joints are mortise/tenon where appropriate.
Optional fixing kits either Thru-bolt or resin depending on application;
Fixing kit; Through Bolts M10 120mm x 2, x2 25mm Oak mushroom caps or
Resin Kit; X2 resin set 160mm M12 (inc of resin capsule), x2 25mm Oak Mushroom caps.
All product codes Prefixed with F are certified FSC mix 70% INT-COC-003944.274.
Prices quoted are for single items not per pair. Excludes delivery costs. Delivery normally 2 working days.
The safe working load is calculated with a safety factor of 6. Calculations to find the load should be obtained to prove suitability of the product for your application.
Our Timber products are inspected for faults, dead knots and shakes are filled using a two-part resin filler. All our timber products are now treated with an industrial wood preservative as defined in BS/EN 335-1:1994. The product protects the wood surface against wood destroying and wood discolouring fungi and satisfies the performance requirements of EN599-1. This allows the product to be stained/painted on site.
