Downloads:Technical Data SheetSelf Drilling dowel

PRODUCT CODE: XR10120
X10 Cross-shaped post base

£83.94
Ex VAT
  • Out of stock
  • Available for back order


READ MORE

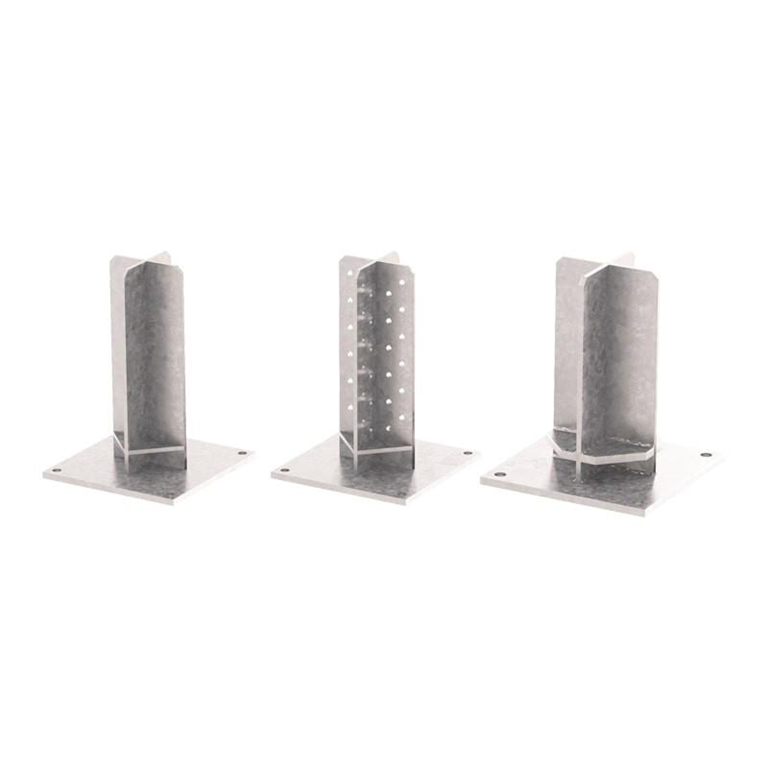

X10 Cross-shaped post base



Rothoblaas in partnership with Canopy Products brings you the Holz Technic brand.

The X10 model is a totally concealed post base that offers different strength levels according to the fastening configuration used. Ideal for creating pergolas, gazebos or Car barns which do not require bracings and are open on all sides.

Moment-resisting joint for fixed- end constraints. Values of the characteristic moment certified in both directions.

S235 Hot dip galvanised and thermo dust anti corrosion coating for service classes 1, 2 and 3.

 The base constraint can absorb horizontal loads allowing some structures to be open on all sides and not require bracing. Used for Car barns, securing pergolas, Gazebos and garden structures together with other Timber posts/columns.

Please refer to the Product spec if ordering self tapping-dowels for number required according to your application and alter the quantity when added in the shopping cart. The price is for one only. Please press update cart when you have made your number selection.

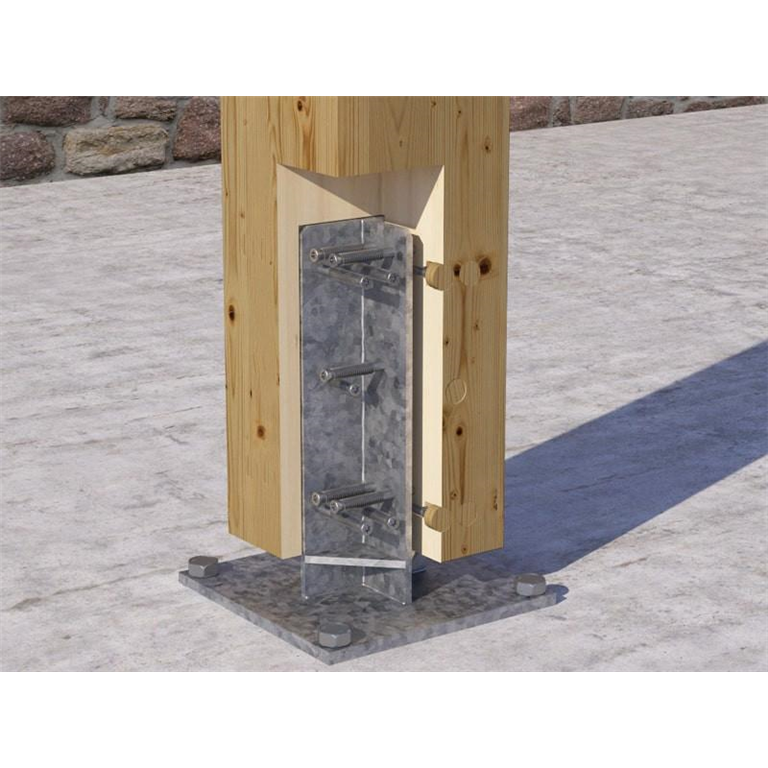

XS10 - Fastening with dowels or bolts

CODE BOTTOM PLATE [mm] LOWER HOLES [n. x mm] H [mm] KNIFE PLATE THICKNESS [mm] CROSS SHAPED BLADES PCS.
XS10120 220 x 220 x 10 4 x 13 310 6 SMOOTH 1
XS10160 260 x 260 x 12 4 x 17 312 8 SMOOTH 1

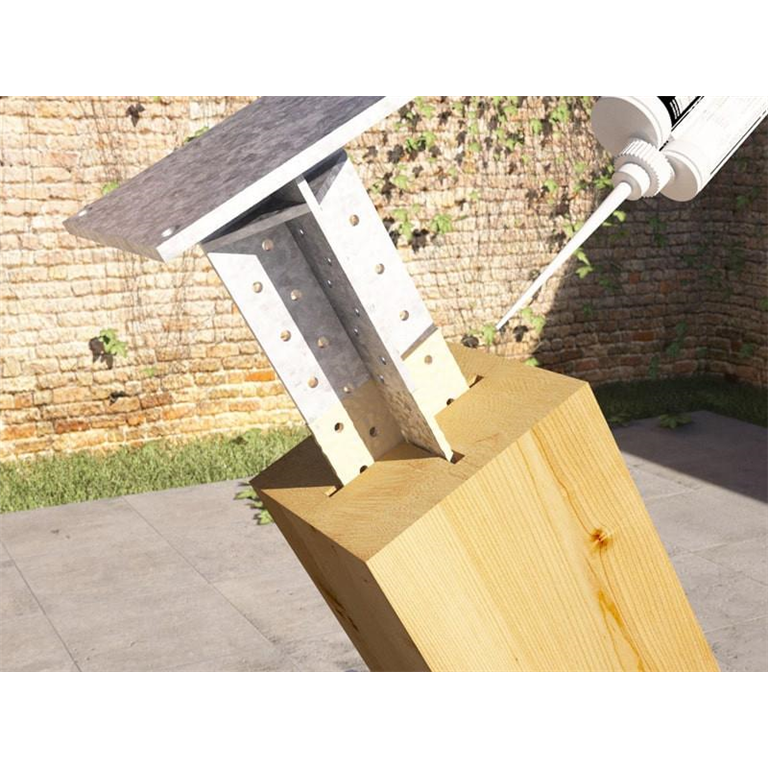

 XR10 - Fastening with resin for wood

CODE BOTTOM PLATE [mm] LOWER HOLES [n. x mm] H [mm] KNIFE PLATE THICKNESS [mm] CROSS SHAPED BLADES PCS.
XR10120 220 x 220 x 10 4 x 13 310 6 HOLES 8 1

XR10120 CE marking being applied for.

Price reflects single item. Excludes delivery. Delivery normally 2 working days.

If showing out of stock, please contact us as normally delivery can be made within 7 to 10 days.

Bulk orders please contact us as discounts may apply and the most economic delivery charges can be agreed.

Due to variances in Timber finishes some adjustment to the post/column might be required on site with some of the bases.
