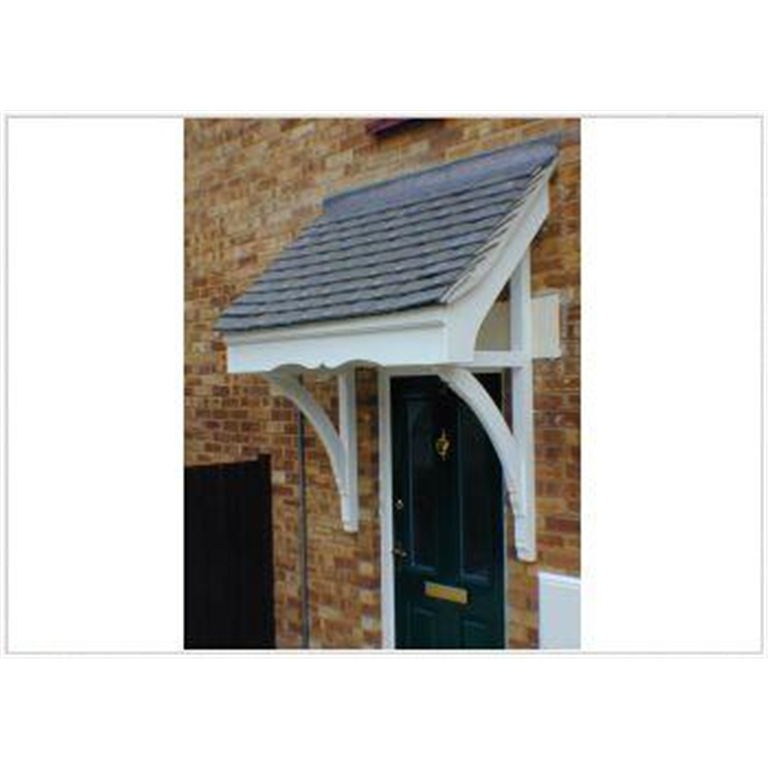

Mono Pitch Timber Swakley Door Canopies 1280mm to 1500mm wide, 750mm projection Code – F-SW1

SKU:F-SW1

In Stock

£304.50£331.50 | Excluding VAT

Clear
Quantity
Compare

Fittings Kit Includes:

  • 6 No 150mm AND 4No 100mm x 10mm SLEEVE ANCHORS.
  • 18 No TILE BATTENS, SLATERS FELT CEMENT FIBRE SOFFIT BOARDS AND GALVANIZED NAILS 2 No 70mm x 6mm WOOD SCREWS.

Swakley Period Door Canopies are high quality softwood joinery products, built to our standard projection. Any length can be manufactured to your special requirements up to a maximum of four metres long. 1280mm to 1500mm wide, 750mm projection, 750mm above door head height, maximum brick opening 910mm to 1164mm. 45 degree pitch , weight 28kg.

  • Please specify width on ordering. Built to order.
  • The canopy can receive tiles; slate or felt tiles and comes with a pair of MSL45T brackets
  • Technical-  Dip treated with a base coat micro porous stain. A 6mm over-boarded plywood soffit, a pole plate and a bottom rail carries the birds mouthed rafters with a angled head and foot cut to fit the bevelled pole plate and bottom rail. The butt joints are glued and air gun nailed. A shaped fascia board and shaped barge boards are fitted to the carcass.
  • Prices exclude delivery, please allow 10 days for delivery.
  • Optional fixing kit available see fixings section
  • Optional decorative white cast resin crests available that sit along the head of the bracket. See fixing section
Weight 28 kg
Dimensions 1.356 × 0.75 × 0.75 mm
