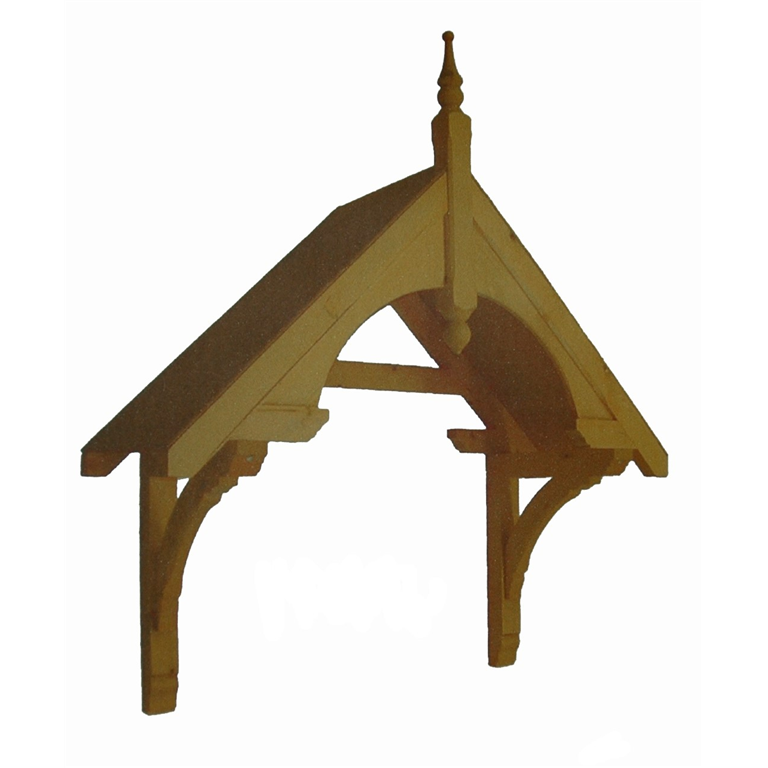

The Walmersley Door Canopy is a high quality dual pitch softwood joinery product. (FSC - INT-COC-003944.274) 1510mm wide, 505mm projection, 740mm high above door head, 1084mm maximum brick opening, 45° pitch, weight 26kg- F-PCS-W3 •The canopies can receive your tiles, slates or felt tiles. Comes with a pair of F-SG20-T gallows brackets. •Technical- Dip treated with a microporous base coat stain. Bespoke products are made from the original design (pitch, size of the components can vary) to your requirements. The canopy set consist of a pair of gallows brackets, one decorative front truss one open rear truss, two plywood soffit boards, two tilt fillets and two sprockets. The width is measured from the extreme ends of the rafter’s foot cut to foot cut. Projection is the total projection from the wall to the edge of the soffit. The canopy is constructed from European red deal fifths. All joints are mortise and tenon to all framework and brackets. All seen surfaces are twice sanded 80s grit and 100s grit. •Price excludes delivery, product is available for next day delivery. •Optional fixing kit available, see fixings section. Fittings Kit Includes:
